16k Super 20

Easily move EMPTY 20′ containers and pull with a pickup truck.

The 16k Super 20 is identical to the 24k Super 20, offered at the same price. However, this trailer does not require a Commercial Driving License to tow, provided the combined GVWR of both your truck and the trailer is less than 26,000 lbs, as it is legally designated for carrying only empty 20′ containers. If you are only moving empty or very lightly loaded containers, we recommend this model, as it can be towed by anyone with a regular driver’s license.

Prefer to pull with a semi-truck? Air brake and 5th wheel options available.

  • Deck Length: 20′
  • Overall Length: 31′ 8″
  • GVW Capacity: 16,000 lb
  • Curb Weight: 8,650 lb
  • Payload Capacity: 7,350 lb
  • Deck Height: 37″

Apply for Financing

Disclaimer: No device, if used improperly or in an unsafe manner or a manner for which it is not designed, is fool proof. Some fools are bigger than others. QuickLoadz has made every effort to automate and simplify moving sea shipping containers, but any tool or device can be neglected or misused to the point of injury of the device, property, operator, or bystanders. Automation, simplification, or even a rear-view camera does not keep someone from running the engine without oil, or backing the trailer into or over others. It is always the operator’s responsibility to operate the machine in a safe manner.

Deck Length


Overall Length

31′ 8″

GVW Capacity

16,000 lb

Curb Weight

8,650 lb

Payload Capacity

7,350 lb

Deck Height



Treaded Plate Metal Decking

Jack Type

2 Speed Screw

Hoist Type


Load Angle


Brake Type


Winch Capacity

20,000 lb

Hydraulic Power Source

All-Electric Power Pack


5 Position Pintle Standard


Slipper Leaf Spring


235/80R16 LRE

Main Frame

W10 × 12 lb. I-Beam

Side Rails

7″ Continuous Bend

Cross Members

5″ C-Channel 16″ oc


Cold Formed Main Beam


2 12,000 lb. Oil Bath Bearing

Conspicuity Striping


Full Width Rear ICC Bumper


LED Lights


QuickLoadz Moving System

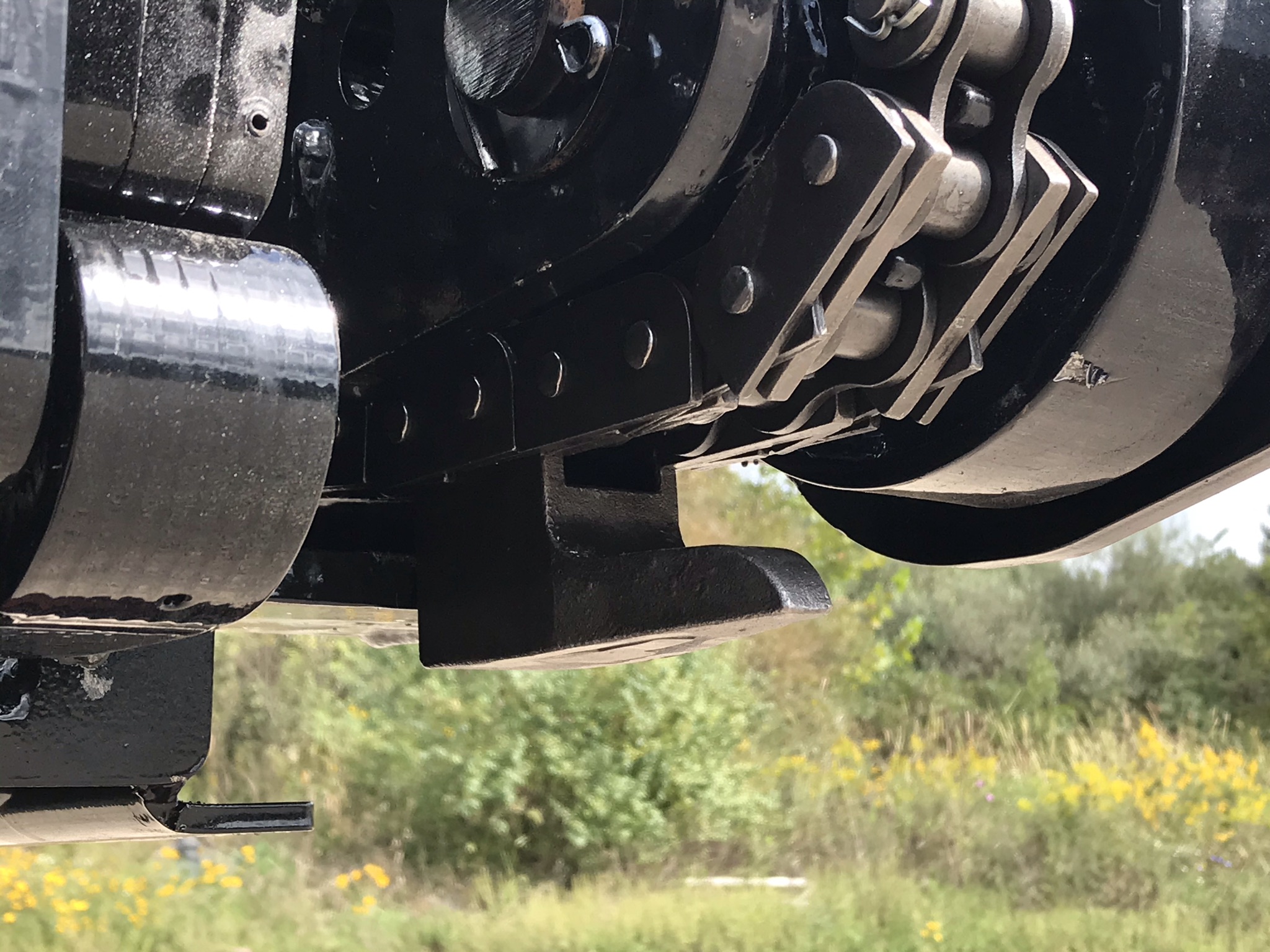

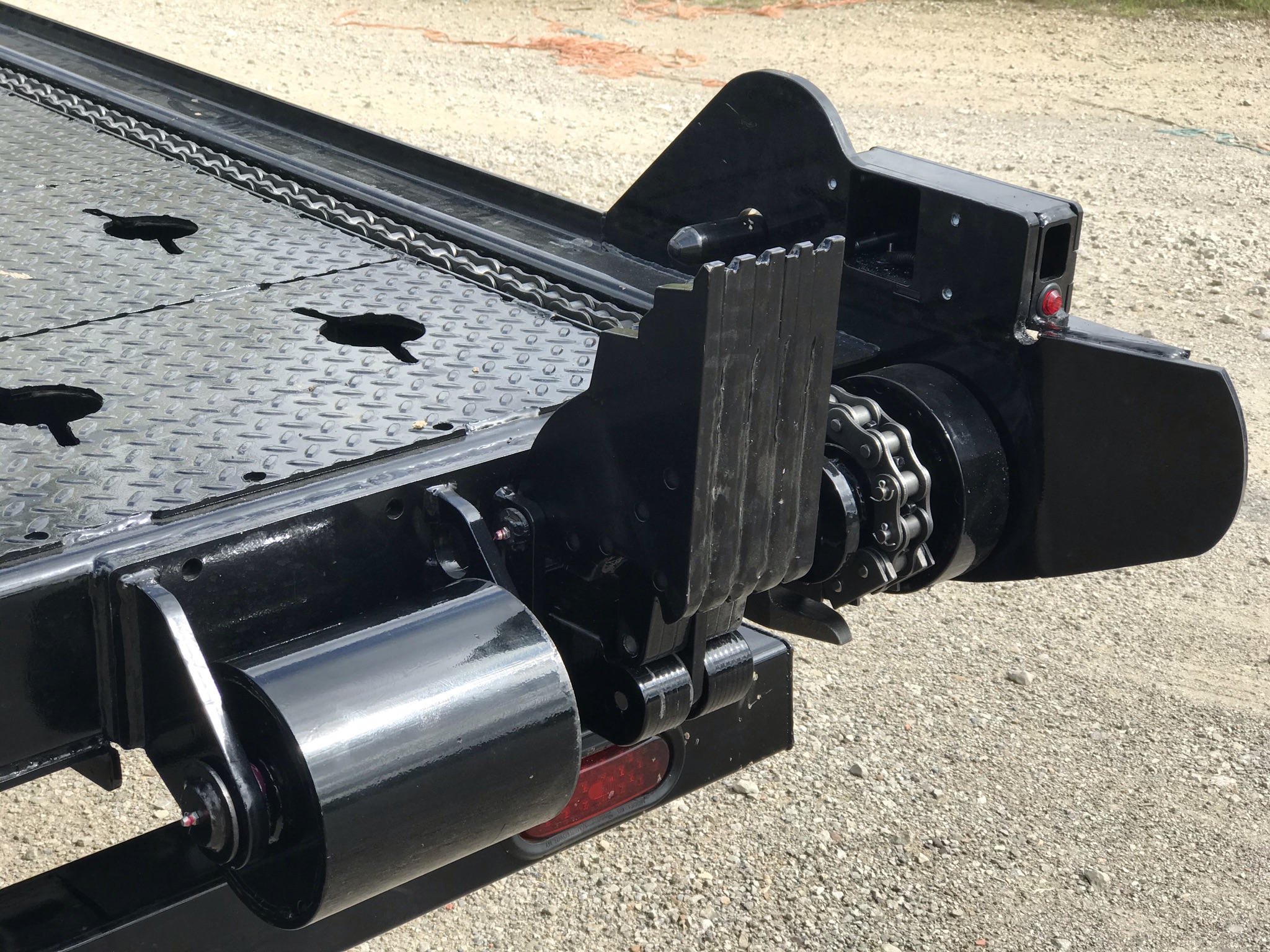

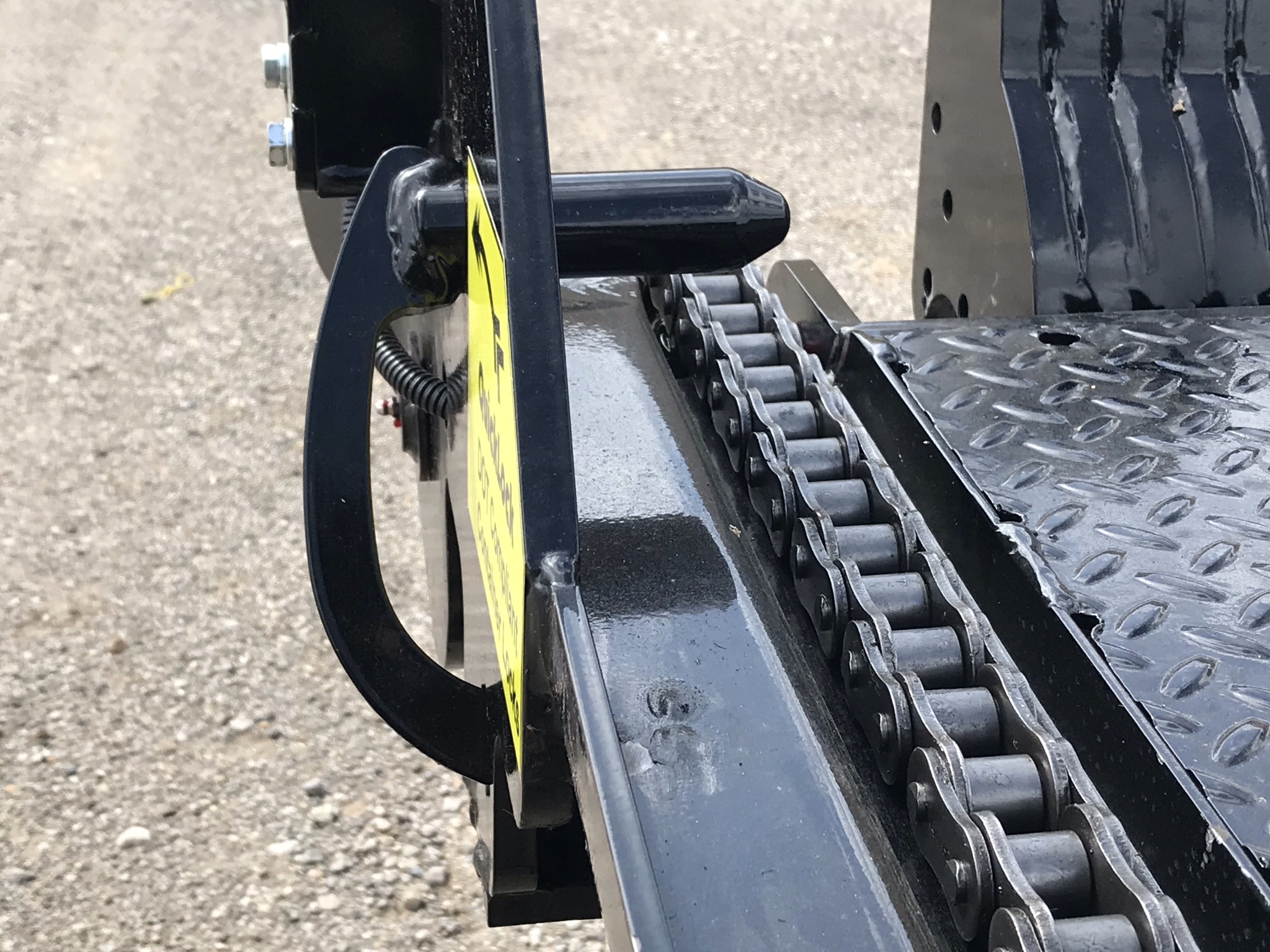

Dual Chain Drive; 6″ Driveway-Safe Rear Rollers; 2 Power Lift Wedges; Remote Smartphone Control


  • Hydraulic Jacks
  • Hutch 9700 Spring Suspension
  • 15,000 Axles
  • Air Ride Suspension
  • Air Brakes
  • Electric over Hydraulic Disc Brakes
  • Gooseneck Coupler
  • Gooseneck 5th Wheel Pin Insert
  • Fifth Wheel
  • Add Bed Length
  • Small Aluminum Toolbox
  • Full-Size Aluminum Toolbox
  • Full-Size Steel Toolbox
  • Mud Flaps
  • 10W Solar Battery Smart Charger
  • 110V Battery Charger
  • Spare Tire
  • Dedicated Android Tablet
  • Tow Ramps
  • Tow Bar
  • Tow Package (Ramps + Bar)
  • Custom RAL Color Powder Coat
  • Galvanized Trailer Bed
