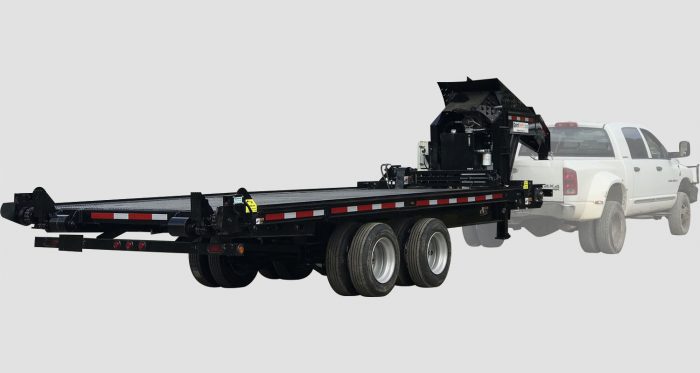

20k Super Short 40

Shortest trailer available to easily move EMPTY 40’ containers.

  • Deck Length: 40′
  • Overall Length: 42′
  • GVW Capacity: 20,000 lb
  • Curb Weight: 9,800 lb
  • Payload Capacity: 20,000 lb
  • Deck Height: 51″

Disclaimer: No device, if used improperly or in an unsafe manner or a manner for which it is not designed, is fool proof. Some fools are bigger than others. QuickLoadz has made every effort to automate and simplify moving sea shipping containers, but any tool or device can be neglected or misused to the point of injury of the device, property, operator, or bystanders. Automation, simplification, or even a rear-view camera does not keep someone from running the engine without oil, or backing the trailer into or over others. It is always the operator’s responsibility to operate the machine in a safe manner.

Deck Length

40′

Overall Length

42’

GVW Capacity

20,000 lb

Curb Weight

9,800 lb

Payload Capacity

20,000 lb

Deck Height

51″

Decking

Treaded Plate Metal Decking

Jack Type

2 Speed Screw

Hoist Type

Tilt and Slide

Load Angle

Brake Type

Air

Winch Capacity

20,000 lb

Hydraulic Power Source

38 HP EFI Kohler

Coupler

Fifth Wheel

Suspension

Slipper Leaf Spring

Tires

215/75R17.5

Main Frame

W12 × 19 lb. I-Beam

Side Rails

7″ Continuous Bend

Cross Members

5″ C-Channel 16″ oc

Tongue

Cold Formed Main Beam

Axles

1 20,000 lb. Oil Bath Bearing

Conspicuity Striping

YES

Full Width Rear ICC Bumper

YES

LED Lights

YES

QuickLoadz Moving System

Dual Chain Drive; 6″ Driveway-Safe Rear Rollers; 2 Power Lift Wedges; Remote Smartphone Control

Options

  • Hydraulic Jacks
  • Auto Tire Inflation System
  • Air Ride Suspension
  • Add Bed Length
  • Small Aluminum Toolbox
  • Full-Size Aluminum Toolbox
  • Full-Size Steel Toolbox
  • Mud Flaps
  • 10W Solar Battery Smart Charger
  • 110V Battery Charger
  • Spare Tire
  • Dedicated Android Tablet
  • Dual 20’ Container Locking Pins
  • Tow Ramps
  • Tow Bar
  • Tow Package (Ramps + Bar)
  • Custom RAL Color Powder Coat
  • Galvanized Trailer Bed
