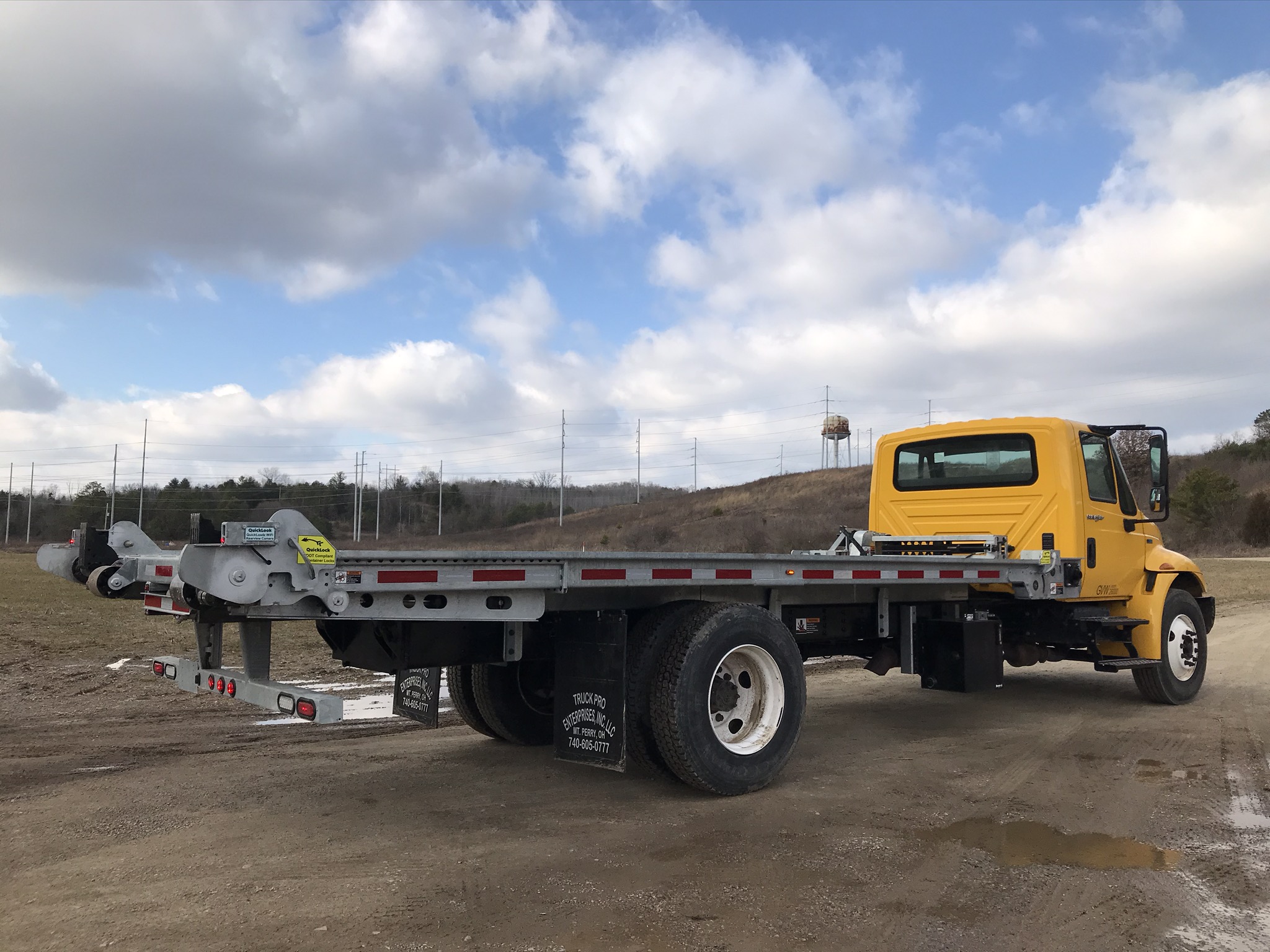

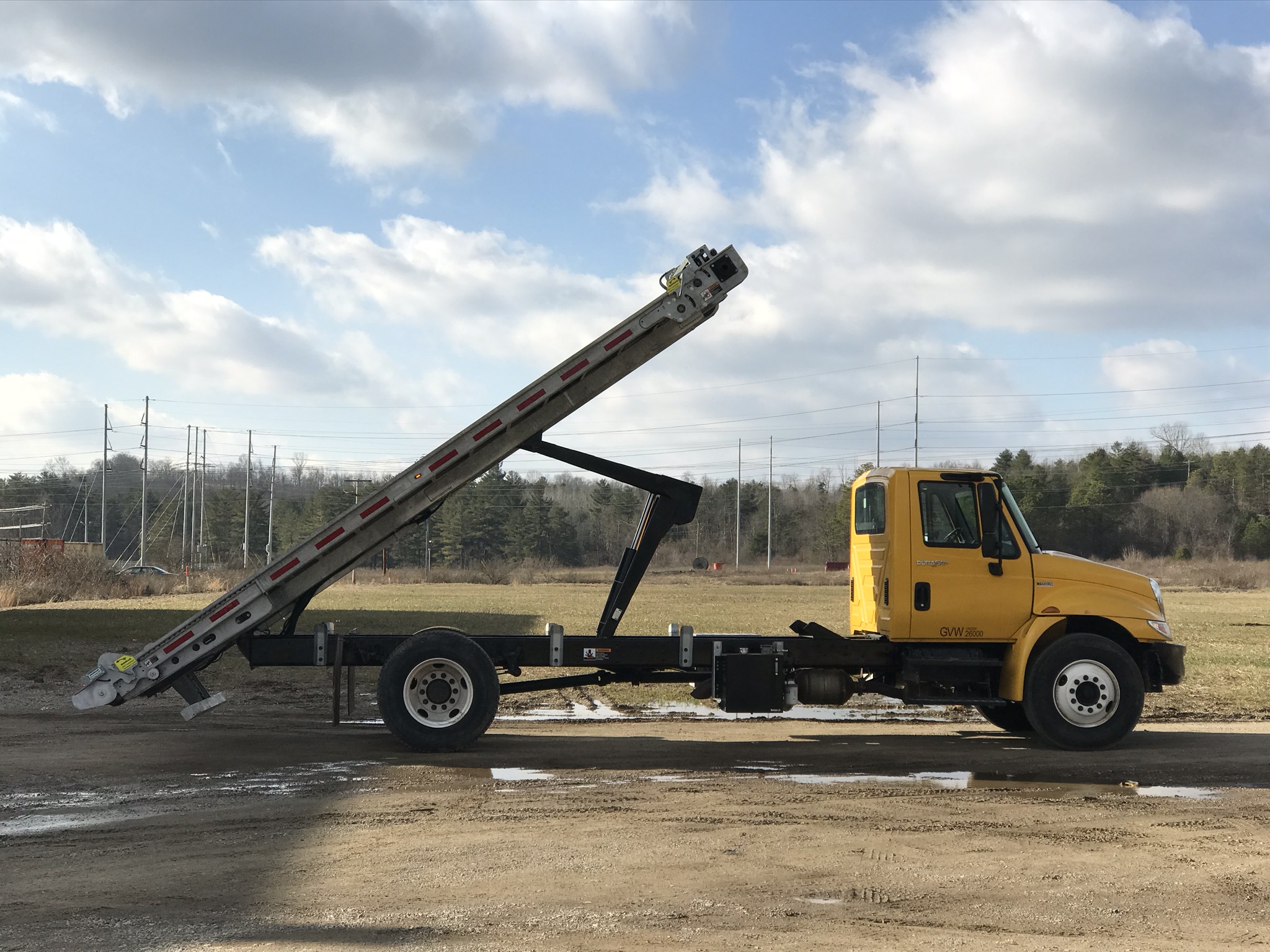

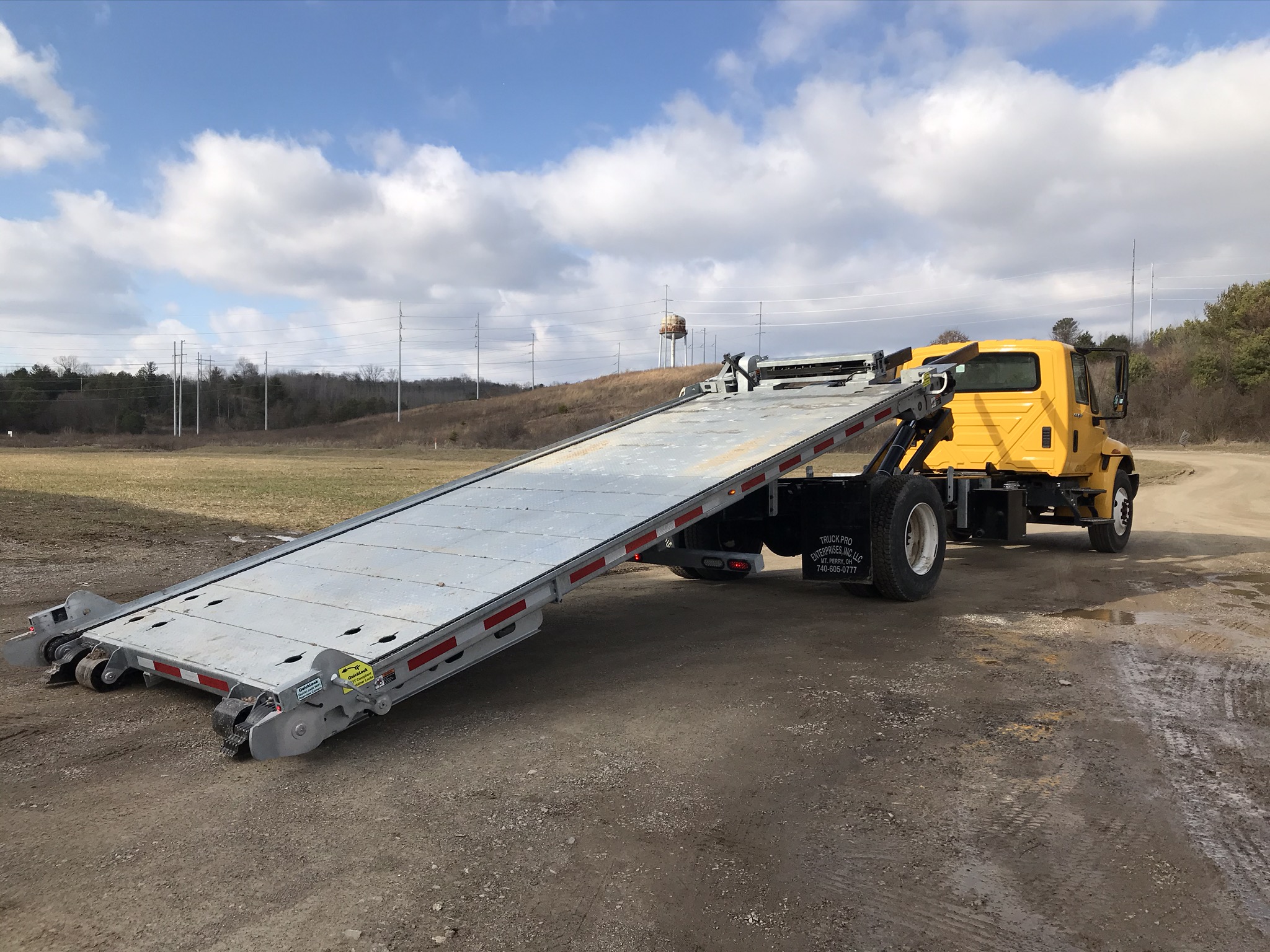

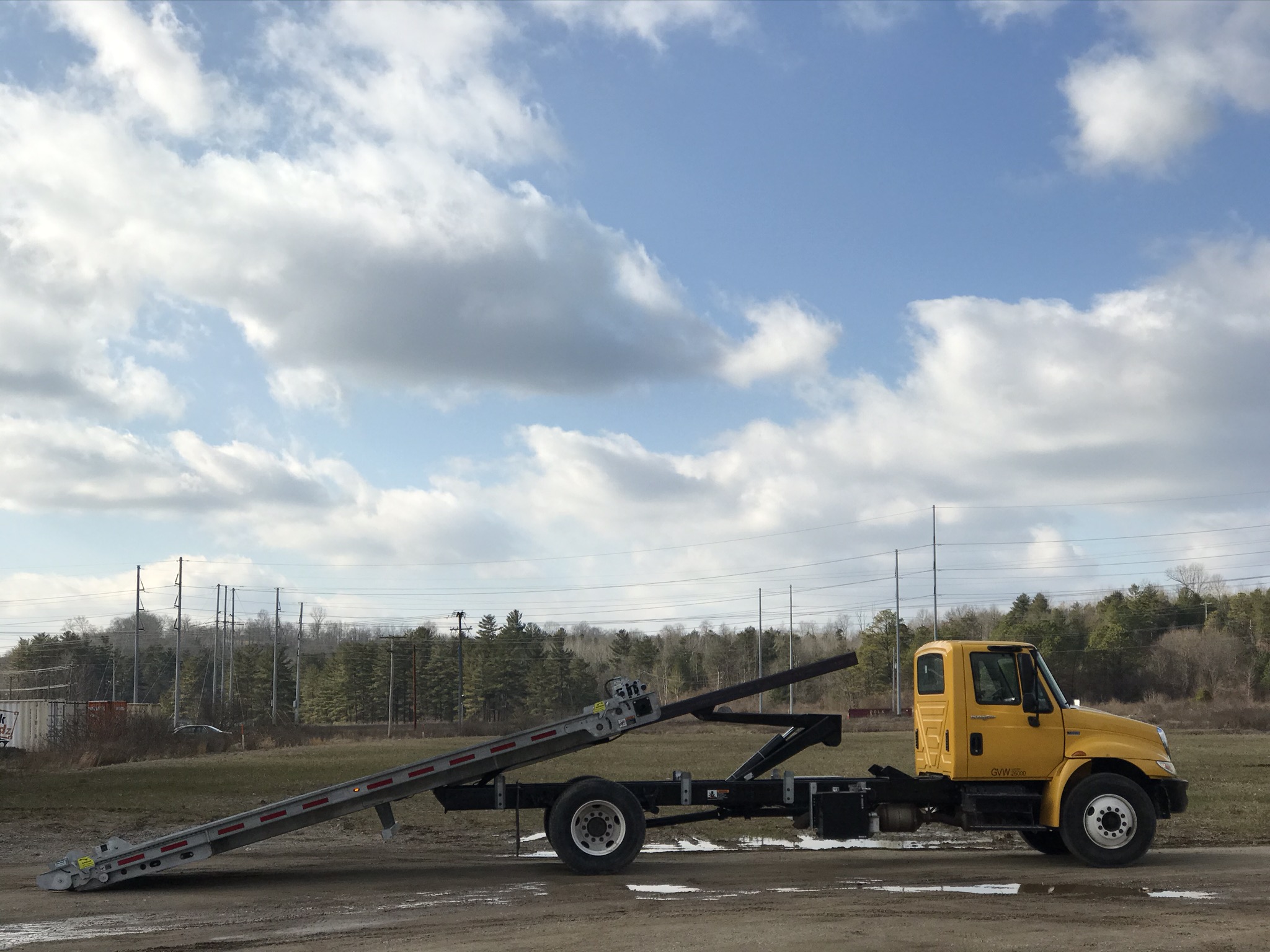

20k Super Bed

Move LIGHTLY LOADED 20′ containers with a QuickLoadz bed that mounts onto your existing truck.

  • Deck Length: 20′
  • Overall Length: 22′ 6″
  • GVW Capacity: 20,000 lb
  • Curb Weight: 7,500 lb
  • Payload Capacity: 20,000 lb

Disclaimer: No device, if used improperly or in an unsafe manner or a manner for which it is not designed, is fool proof. Some fools are bigger than others. QuickLoadz has made every effort to automate and simplify moving sea shipping containers, but any tool or device can be neglected or misused to the point of injury of the device, property, operator, or bystanders. Automation, simplification, or even a rear-view camera does not keep someone from running the engine without oil, or backing the trailer into or over others. It is always the operator’s responsibility to operate the machine in a safe manner.

Deck Length

20′

Overall Length

22′ 6″

GVW Capacity

20,000 lb

Curb Weight

7,500 lbs

Payload Capacity

20,000 lb

Decking

Treaded Plate Metal Decking

Hoist Type

Scissor

Winch Capacity

20,000 lb

Hydraulic Power Source

PTO

Main Frame

7” Semi-Closed Continuous Bend C

Side Rails

7″ Continuous Bend

Cross Members

5″ C-Channel 16″ oc

Conspicuity Striping

YES

LED Lights

YES

QuickLoadz Moving System

Dual Chain Drive; 6″ Driveway-Safe Rear Rollers; 2 Power Lift Wedges; Remote Smartphone Control

Options

  • 40 HP Power Pack
  • Wet Kit, PTO
  • Add Bed Length
  • Dedicated Android Tablet
  • Tow Ramps
  • Tow Bar
  • Tow Package (Ramps + Bar)
  • Installation On Your Own Truck
  • Lengthen Truck Frame, Move Axles
  • Custom RAL Color Powder Coat
  • Galvanized Trailer Bed
