24k Super 20

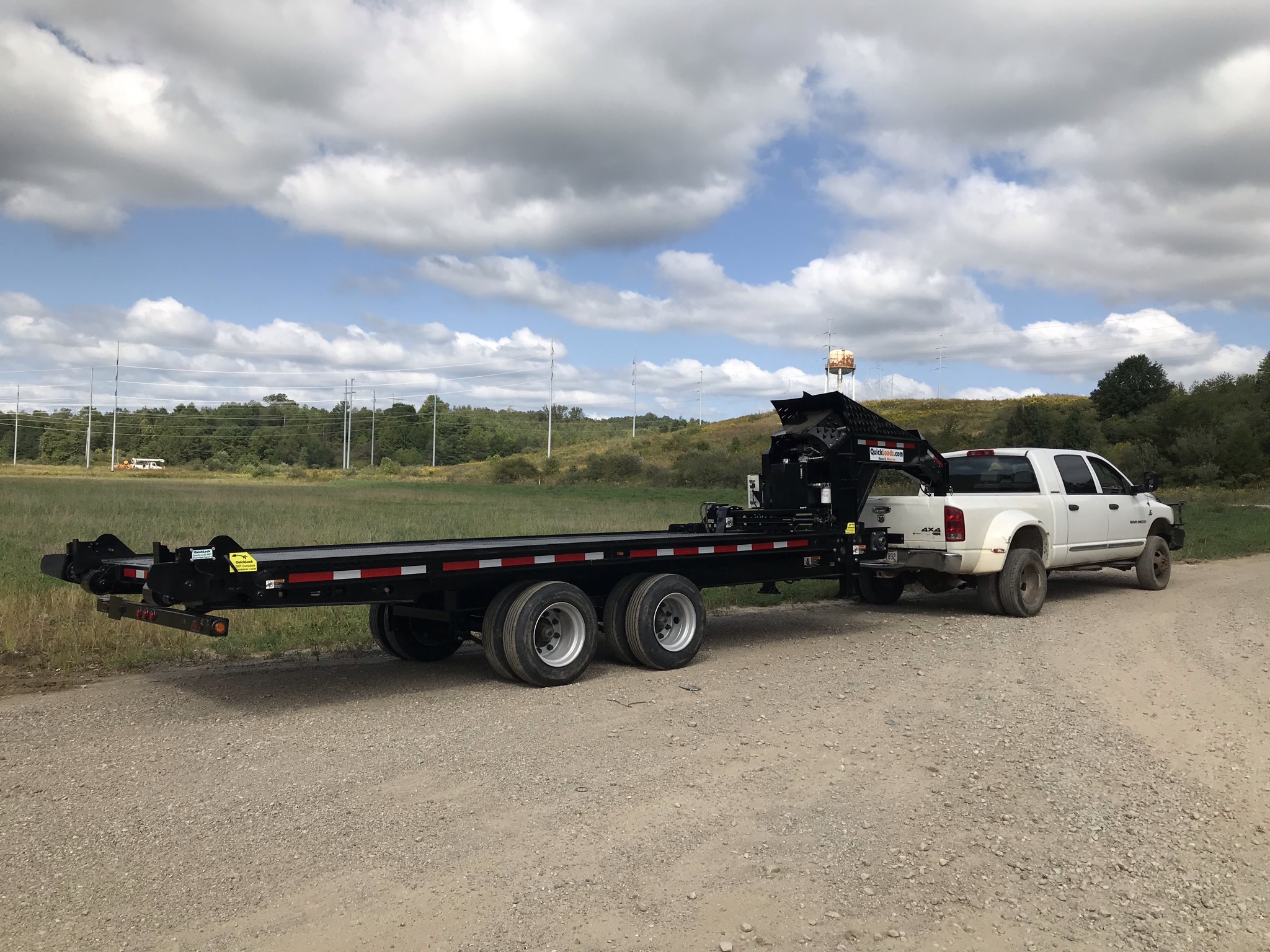

Easily move LOADED 20′ containers and pull with a pickup truck.

Prefer to pull with a semi-truck? Air brake and 5th wheel options available.

  • Deck Length: 20′
  • Overall Length: 31′ 8″
  • GVW Capacity: 24,000 lb
  • Curb Weight: 8,650 lb
  • Payload Capacity: 15,350 lb
  • Deck Height: 37″

Apply for Financing

CIT
ACG Equipment Finance
Ascentium Capital

Disclaimer: No device, if used improperly or in an unsafe manner or a manner for which it is not designed, is fool proof. Some fools are bigger than others. QuickLoadz has made every effort to automate and simplify moving sea shipping containers, but any tool or device can be neglected or misused to the point of injury of the device, property, operator, or bystanders. Automation, simplification, or even a rear-view camera does not keep someone from running the engine without oil, or backing the trailer into or over others. It is always the operator’s responsibility to operate the machine in a safe manner.

Deck Length

20′

Overall Length

31′ 8″

GVW Capacity

24,000 lb

Curb Weight

8,650 lb

Payload Capacity

15,350 lb

Deck Height

37″

Decking

Treaded Plate Metal Decking

Jack Type

2 Speed Screw

Hoist Type

Tilt

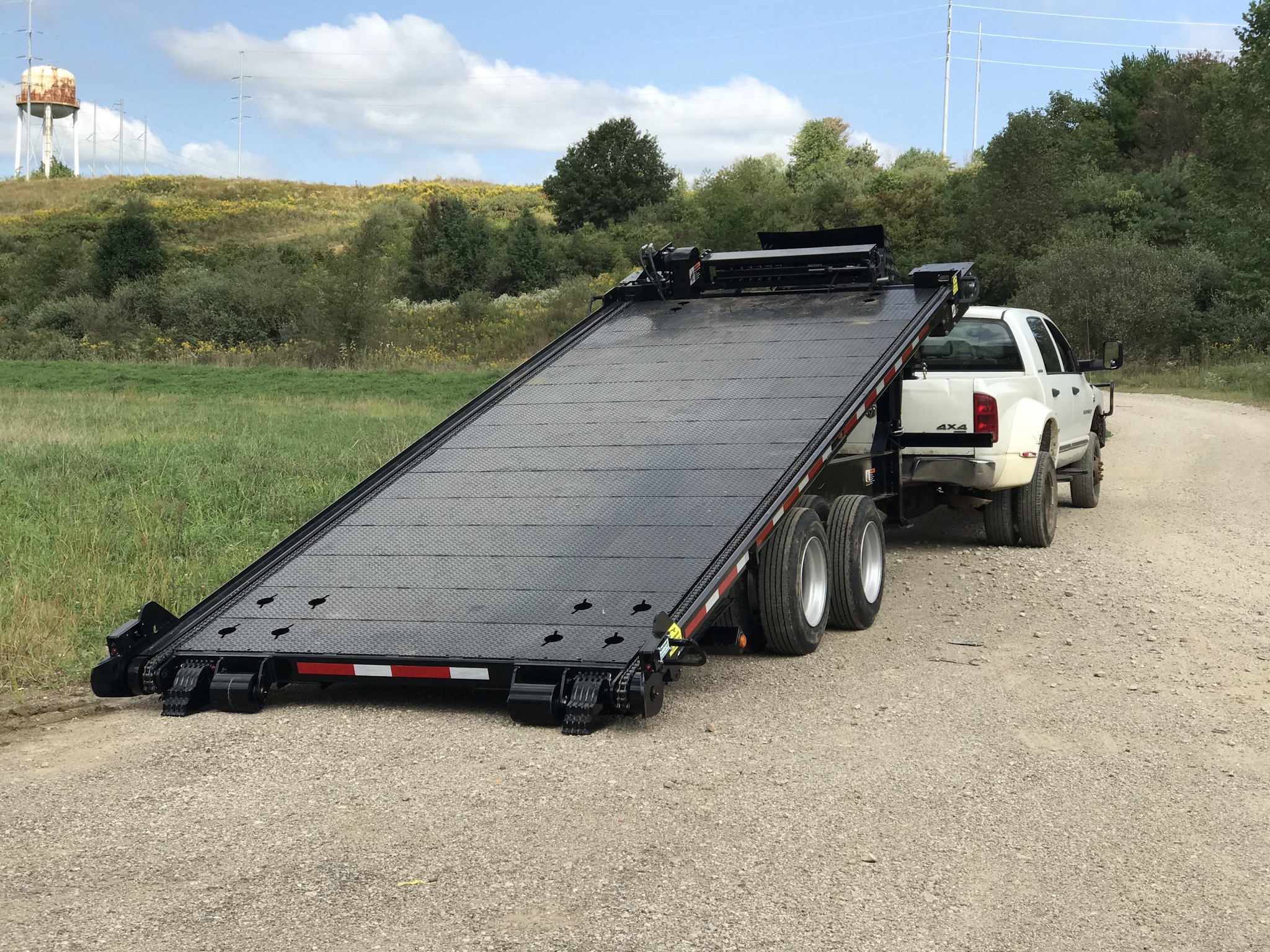

Load Angle

16°

Brake Type

Electric

Winch Capacity

20,000 lb

Hydraulic Power Source

38 HP EFI Kohler

Coupler

5 Position Pintle Standard

Suspension

Slipper Leaf Spring

Tires

235/80R16 LRE

Main Frame

W10 × 12 lb. I-Beam

Side Rails

7″ Continuous Bend

Cross Members

5″ C-Channel 16″ oc

Tongue

Cold Formed Main Beam

Axles

2 12,000 lb. Oil Bath Bearing

Conspicuity Striping

YES

Full Width Rear ICC Bumper

YES

LED Lights

YES

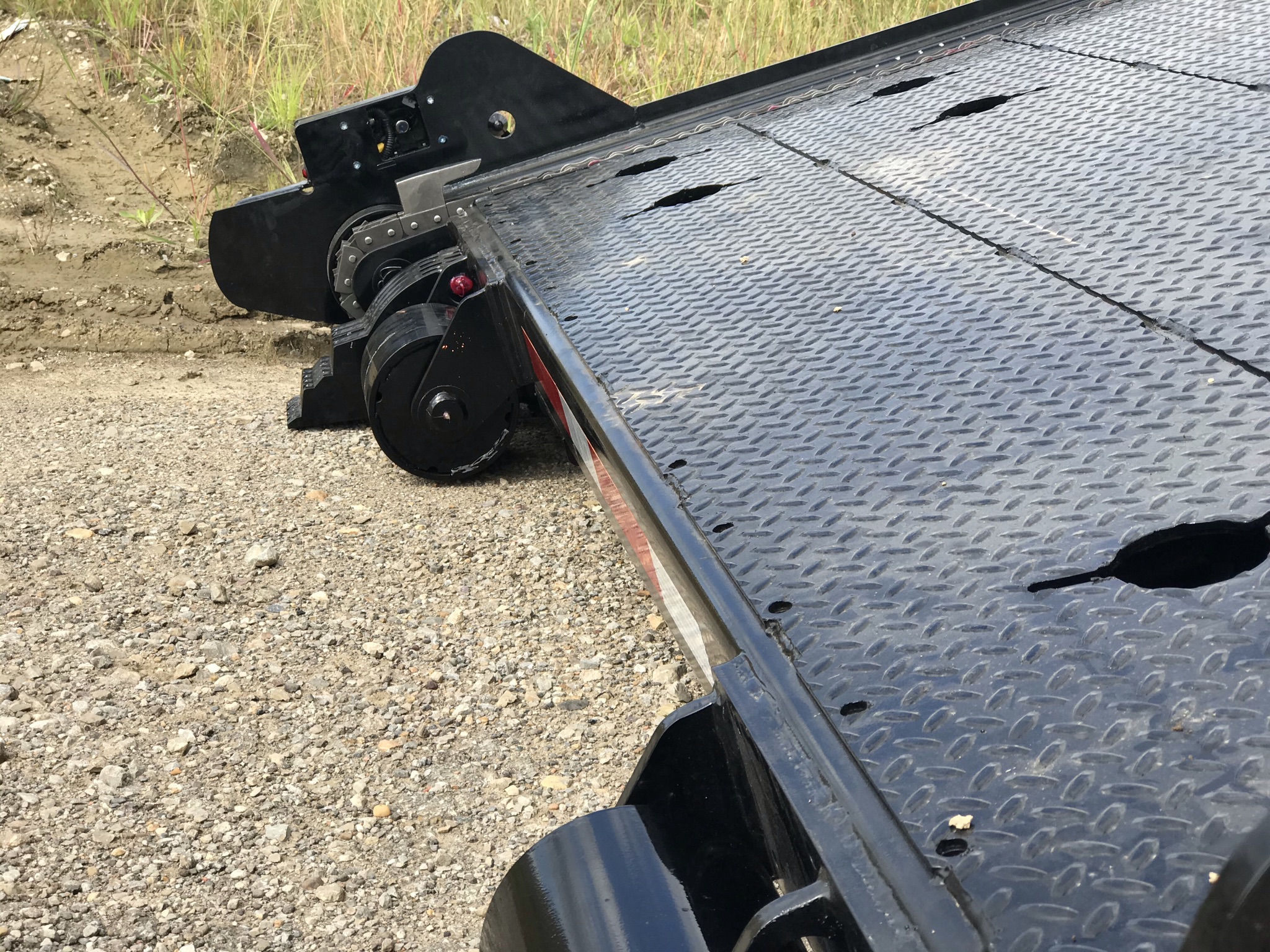

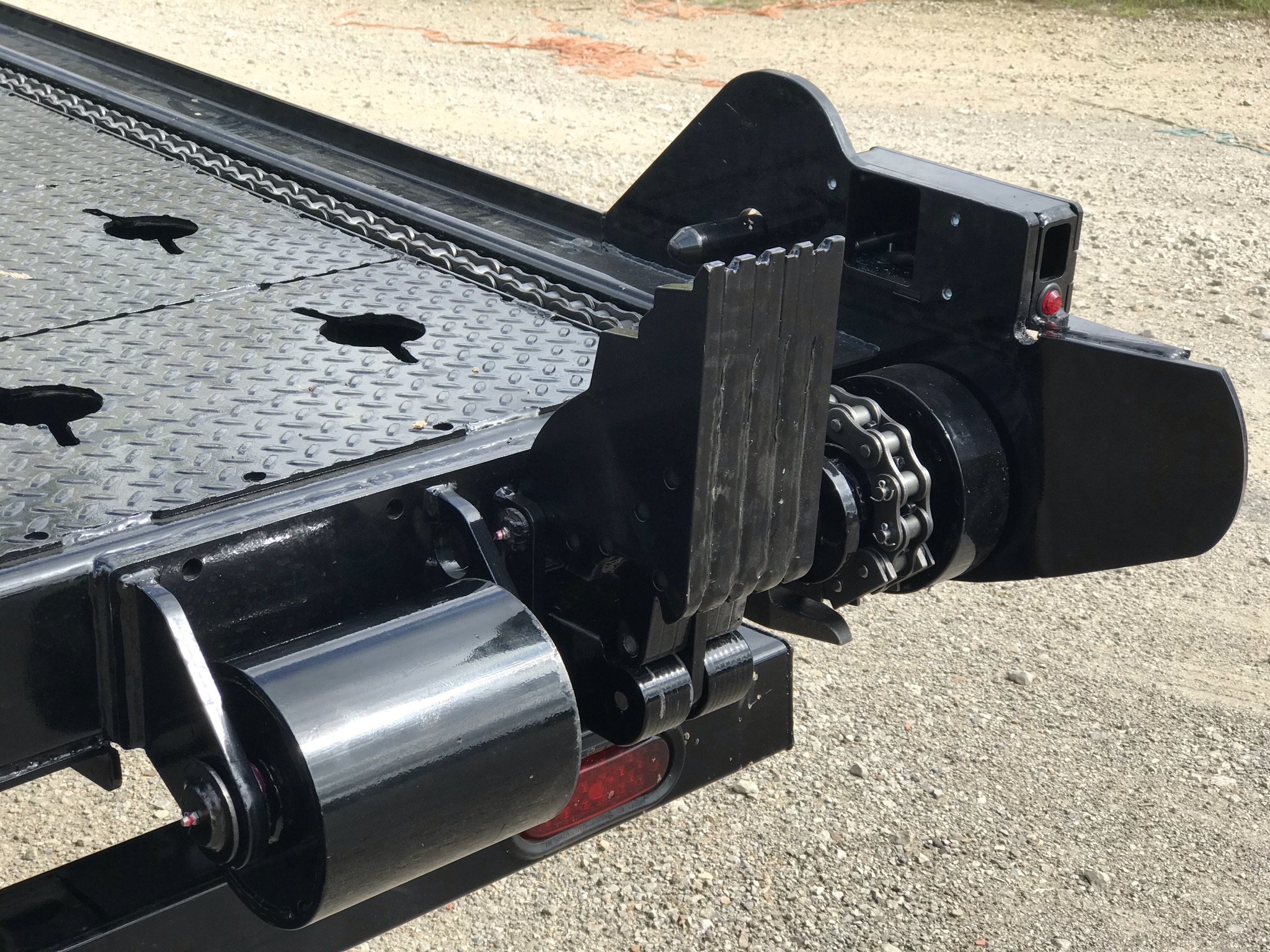

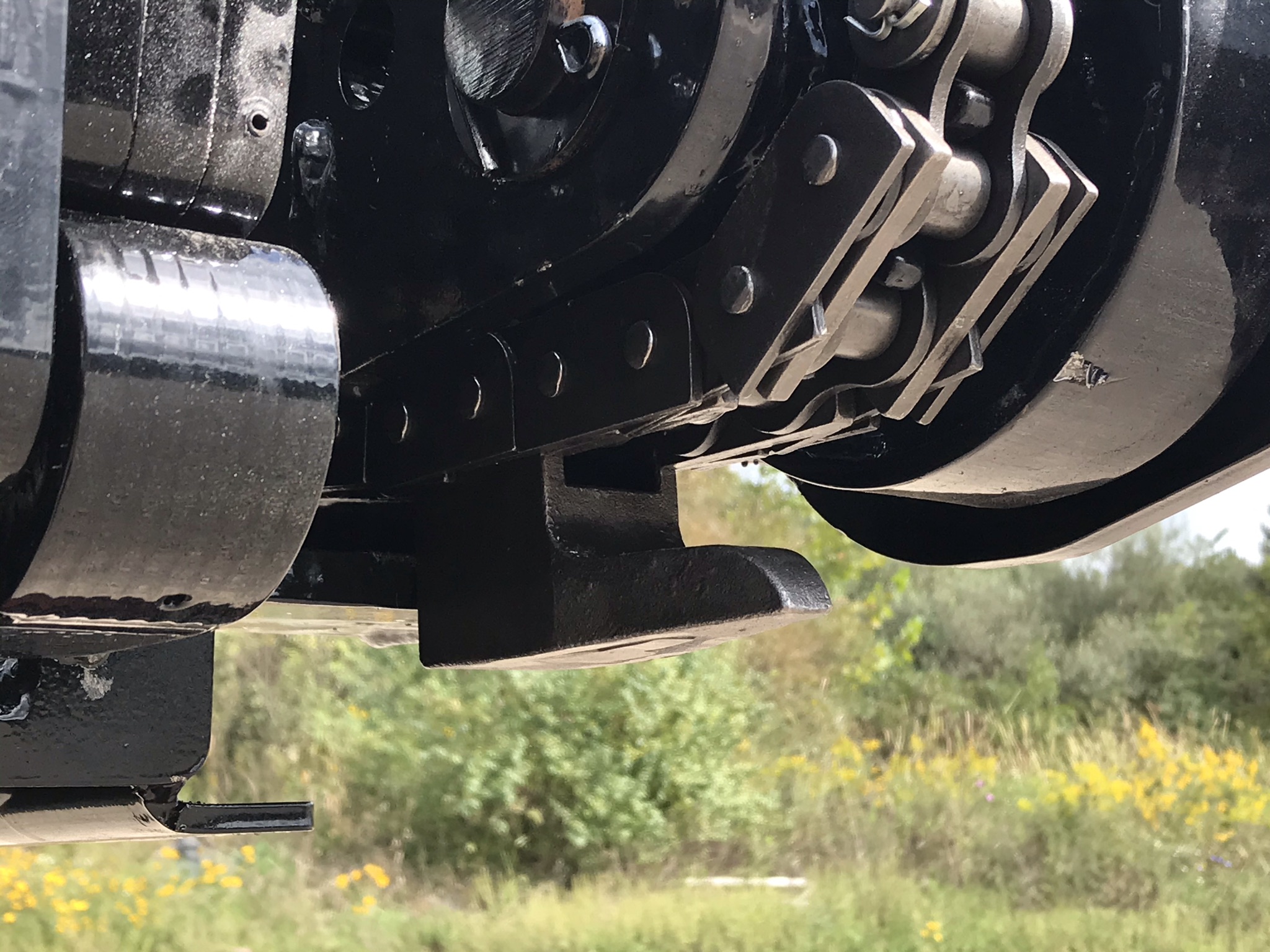

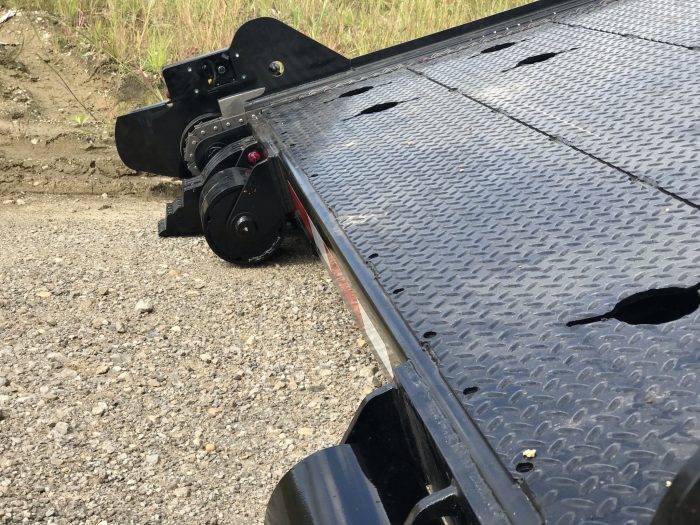

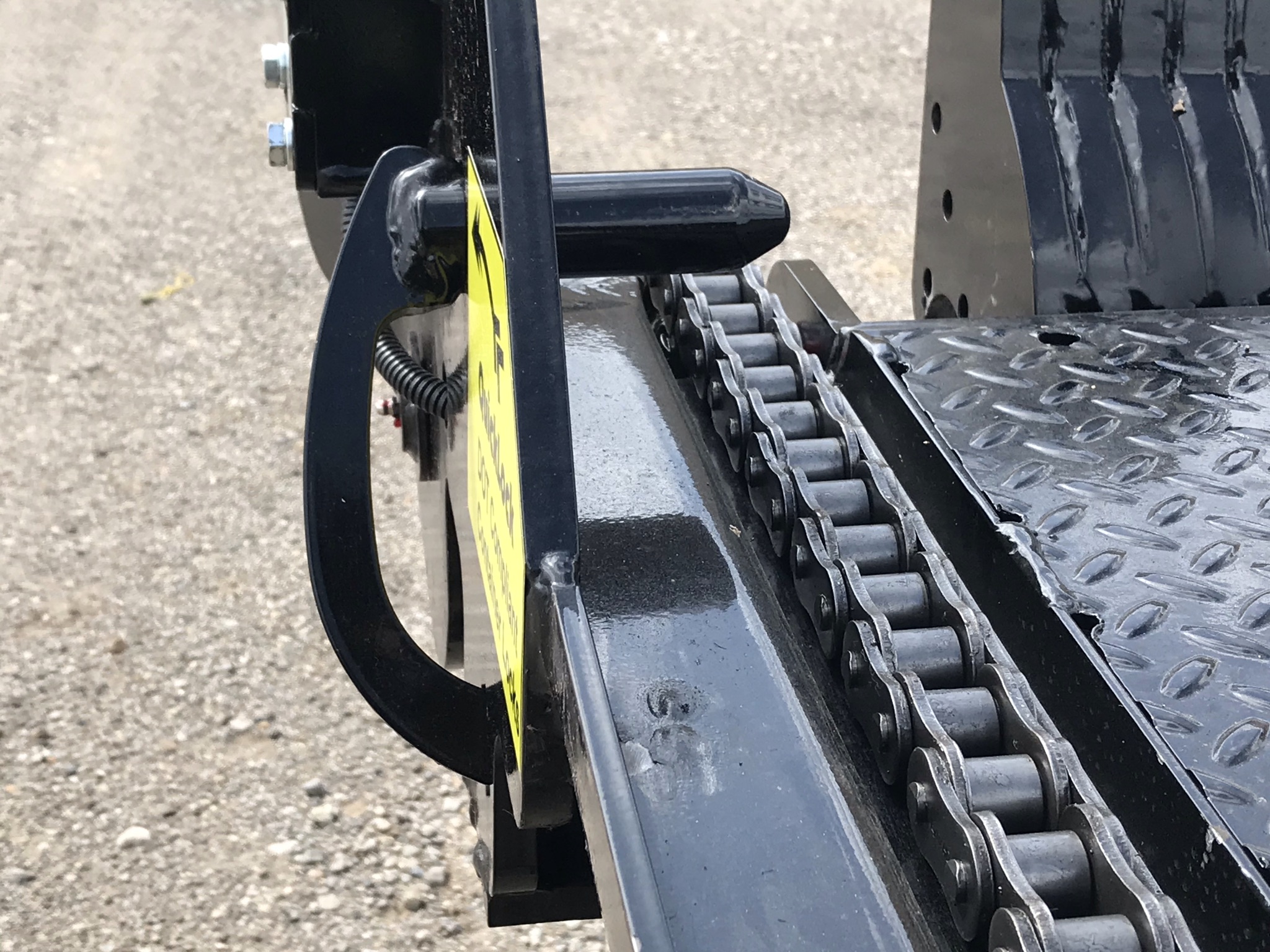

QuickLoadz Moving System

Dual Chain Drive; 6″ Driveway-Safe Rear Rollers; 2 Power Lift Wedges; Remote Smartphone Control

Options

  • Hydraulic Jacks
  • Hutch 9700 Spring Suspension
  • 15,000 lb. Axles
  • Air Ride Suspension
  • Air Brakes
  • Electric over Hydraulic Disc Brakes
  • Gooseneck Coupler
  • Gooseneck 5th Wheel Pin Insert
  • Fifth Wheel
  • Add Bed Length
  • Small Aluminum Toolbox
  • Full-Size Aluminum Toolbox
  • Full-Size Steel Toolbox
  • Frame Tongue Toolbox
  • Mud Flaps
  • 10W Solar Battery Smart Charger
  • 110V Battery Charger
  • Spare Tire
  • Dedicated Android Tablet
  • Tow Ramps
  • Tow Bar
  • Tow Package (Ramps + Bar)
  • Custom RAL Color Powder Coat
  • Galvanized Trailer Bed
